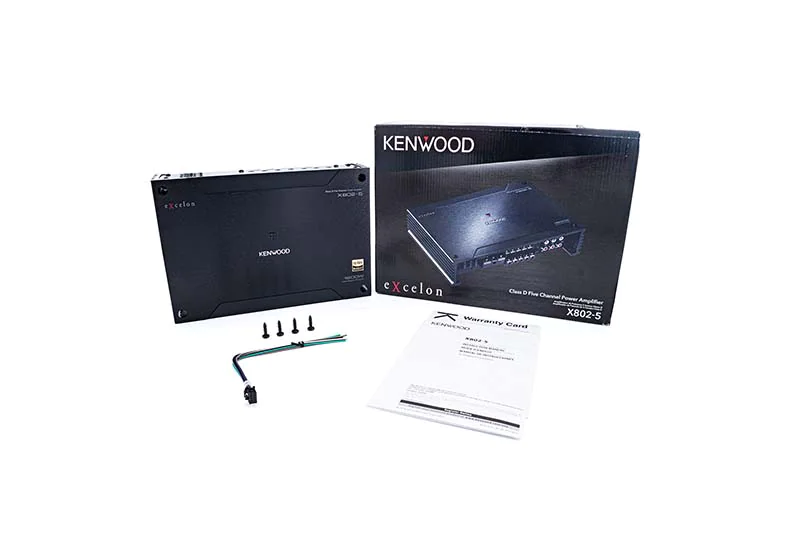

X802-5 Class D 5-Channel Power Amplifier

X802-5 Class D 5-Channel Power Amplifier


Regular price Dhs. 845.00 AED
Regular price Sale price Dhs. 845.00 AED
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorized Seller
    Authorized Seller
  • Flexible Returns
    Flexible Returns
  • 100% Genuine Product
    100% Genuine Product
  • 2 Years
    2 Years Warrenty


The X802-5 Class D 5-Channel Power Amplifier delivers maximum power of 1600W and precise RMS distribution of 75W x4 (4Ω), 50W x4 + 300W (4Ω), and 75W x4 + 500W (2Ω). Its compact size of (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8" makes it versatile for any installation. With variable high and low pass filters, bass boost, and optional wired remote compatibility, this amplifier offers superior sound quality and control.

CTA-2006-D Value Maximum Dynamic Power 65W x4 + 350W x1 at 4ohms and ≤ 10% THD + N
Continuous Power Output 50W + 300W at 4ohms and ≤ 1% THD + N
Signal to Noise 77dBA x4
80dBA x1 reference 1 Watt RMS
Maximum Power Output MAX POWER 1600W
Rated Power Output at 14.4V A/B (4 Ohms) 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms) 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
SUB (4 Ohms) 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms) 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms) 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-50kHz (+0dB, -3dB) A/B
Frequency Response 20Hz-200Hz (+0dB, -3dB) SUB
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged Connection 4Ω to 8Ω allowable
Audio Section Low-Pass Filter 50Hz-200Hz, -24dB/oct (SUB)
High-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Bass Boost 40Hz, 0dB - +18dB (SUB)
Infrasonic Filter -
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals Battery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General Dimensions(WxHxD) (W)9-3/4" x (H) 2-1/16” x (D)6-5/8”
Dimensions(WxHxD) (W) 248mm x (H) 53mm x (D) 169mm
Weight 4.6 lbs ( 2.1 kg)
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 42[A]
Key Features High-Res Audio Compliant
CTA-2006 Compliant
2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Accessorries Signal Sensing Turn-On
Remote Level Control Ready ( Optional KCA-RC01A)
Terminal Cover
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
A B Sub Independent Gain Adjustment
A B AB(MIX) Independent Gain Adjustment
