Kenwood

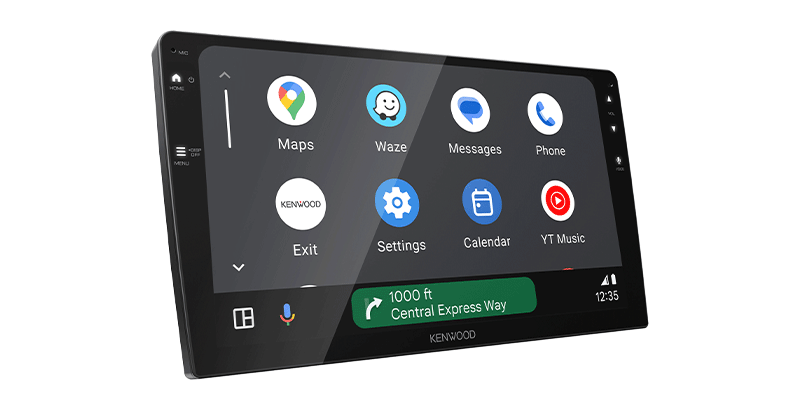

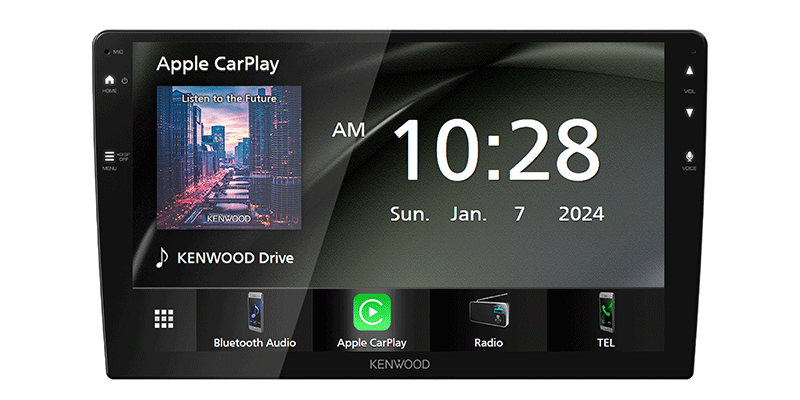

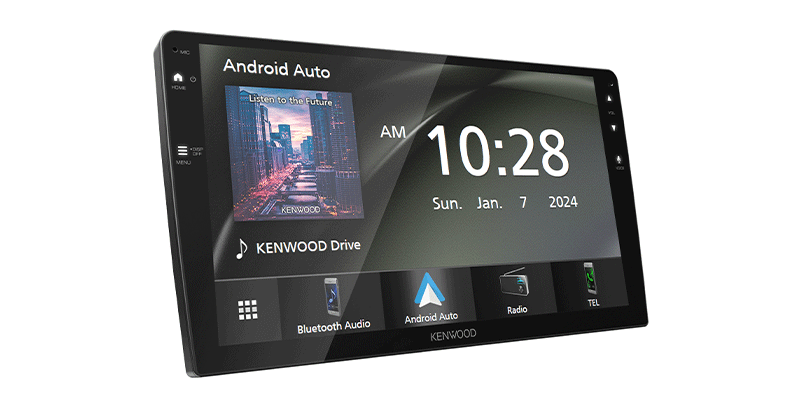

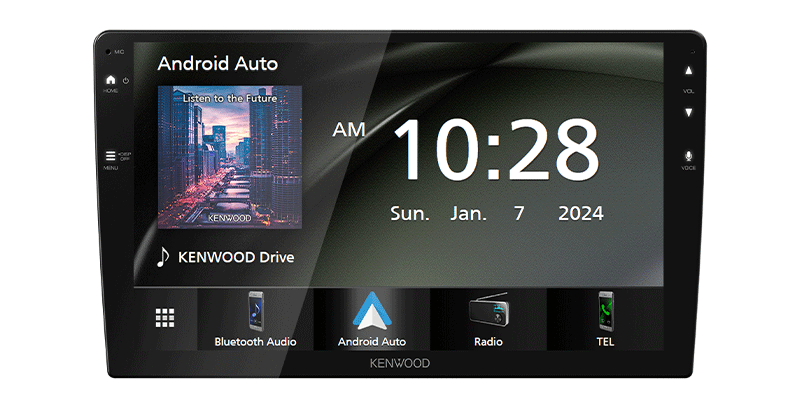

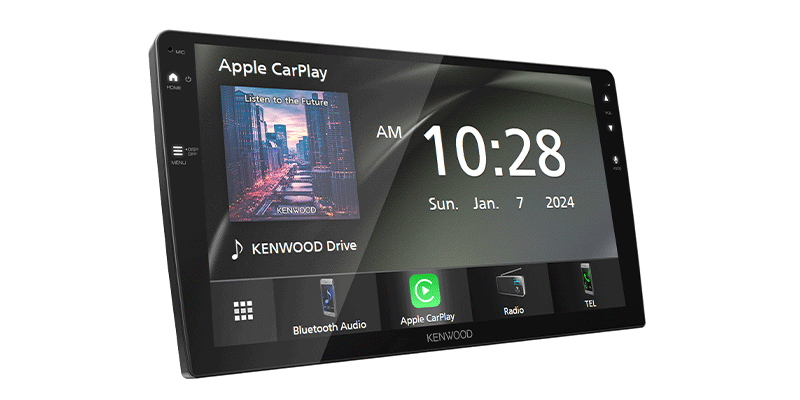

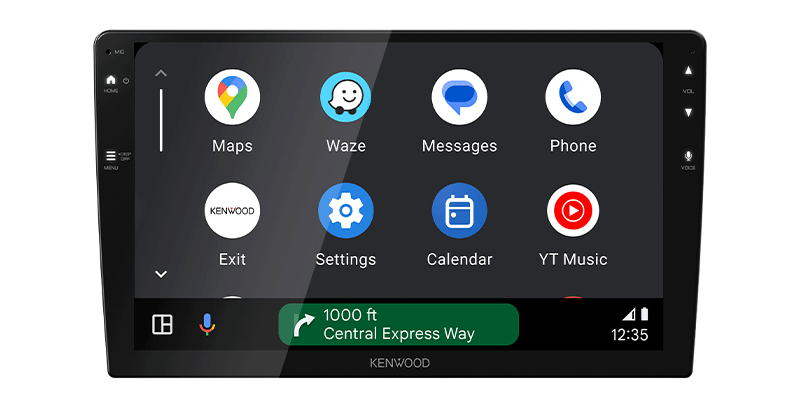

DMX80AXS Monitor with Receiver 9.0" Universal Digital Multimedia Receiver
DMX80AXS Monitor with Receiver 9.0" Universal Digital Multimedia Receiver
SKU:DMX80AXS
Regular price
AED 1,129.00
Regular price
Sale price
AED 1,129.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Upgrade your car's audio system with the DMX80AXS Monitor with Receiver. Enjoy a 9.0" WSVGA display with capacitive touch panel, wired and wireless Apple CarPlay, and Android Auto™. Use the built-in Bluetooth, 13 band EQ, and rear view camera input for added convenience and safety. Experience superior sound quality with 2 preouts and a subwoofer output.
| n Unit | Monitor Section |
Picture size | 9 inches (diagonal) wide | |
|---|---|---|---|---|
| W x H | ||||
| Display system | TN LCD panel | |||
| Drive system | TFT active matrix system | |||
| Number of pixels | 1,843,200 | |||
| 1024H x 600V x RGB | ||||
| Effective pixels | 99.99% | |||
| Pixel arrangement | RGB striped arrangement | |||
| Back lighting | LED | |||
| USB I/F Section |
USB Standard | USB2.0 High Speed | ||
| Connector | Type-A | |||
| File System | FAT32/ exFAT | |||
| Maximum Power Supply Current | DC5V(DC logo) 2.1A | |||
| D/A Converter | 24 Bit | |||
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC | |||
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV | |||
| Wi-Fi Section |
Frequency response | 192k Sampling | 20 - 20,000 Hz | |
| 96k Sampling | 20 - 20,000 Hz | |||
| 48k Sampling | 20 - 20,000 Hz | |||
| 44.1k Sampling | 20 - 20,000 Hz | |||
| IEEE Standard | 802.11 a/ n/ ac | |||
| Frequency Range | 5GHz (5.745～5.825GHz) | |||
| Channels | 149ch | |||
| Auto(149,153,155,157,161ch) | ||||
| Transfer rates (MAX) | 11a:54 Mbps / 11b: 11 Mbps | |||
| 11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps | ||||
| Bluetooth Section |
Bluetooth Specification Version | Bluetooth V5.0 | ||
| Frequency | 2.402 - 2.480 GHz | |||
| RF Output Power (E.I.R.P.) | +0.7 dBm (AVE), Power Class 2 | |||
| Maximum Communication range | Line of sight approx.10m | |||
| Audio Codec | SBC / AAC | |||
| Multi Profile Support | Multi Profile | |||
| Profile | HFP(Hands Free Profile) 1.7 | |||
| SPP(Serial Port Profile) 1.2 | ||||
| A2DP(Advanced Audio Distribution Profile) 1.3 | ||||
| AVRCP(Audio/Video Remote Control Profile) 1.6 | ||||
| PBAP(Phonebook Access Profile) 1.2 | ||||
| FM | Frequency range (Frequency step) | 87.5 - 108 MHz (50kHz) | ||
| Usable sensitivity | 16.2dBf | |||
| S/N:30dB | 1.8μV/75Ω | |||
| Frequency response(±3.0dB) | 30Hz - 14kHz | |||
| S/N Ratio(dB) | 50dB (MONO) | |||
| Stereo separation | 35 dB (1 kHz) | |||
| AM | Frequency range (Frequency step) | 531 - 1611 kHz (9kHz) | ||
| Usable sensitivity | 99μV (40 dBμ) | |||
| Video | Color system of external video input | NTSC/ PAL | ||
| Rear view camera input level (RCA) | 1 Vp-p / 75 Ω | |||
| Video Output level (RCA) | 1 Vp-p / 75 Ω | |||
| Audio | Maximum Power (Front&Rear) | 50Wx4 | ||
| Full Bandwidth Power (Front&Rear) (at less than 1%THD) |
22Wx4 | |||
| Output frequency band | 20 - 20,000 Hz | |||
| Preout level (V) | 2.5 V / 10 kΩ | |||
| Preout impedance (Ω) | 1.4 kΩ | |||
| Speaker Impedance (Ω) | 4 - 8 Ω | |||
| Equalizer | 13 Band | |||
| Band | Frequency | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz | ||
| Level | -09 - +09 (-9dB - +9dB) | |||
| Q | - | |||
| HPF | Frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz | ||
| Slope | -6/ -12/ -18/ -24 dB/Oct. | |||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |||
| LPF | Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through | ||
| Slope | -6/ -12/ -18/ -24 dB/Oct. | |||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |||
| General | Operating voltage | 12V DC car battery | ||

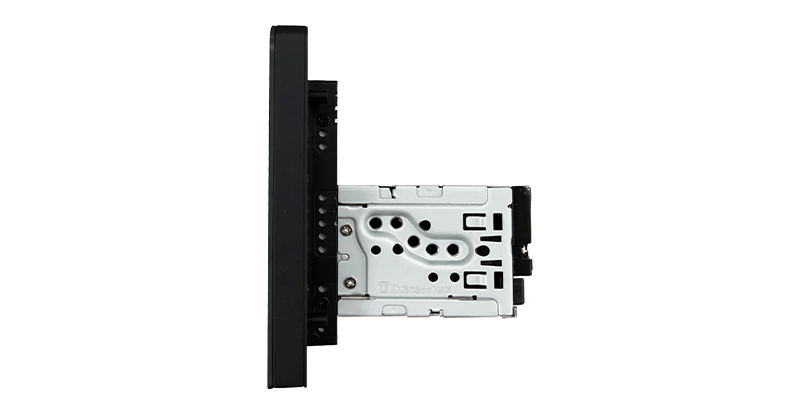

| Main Unit Installation size W x H x D(w/o sleeve) | 229 x 130.5 x 100.8mm | |||
| Weight | Main unit | 1.33 kg | ||
