1 6

Kenwood

DMX723WS Monitor with Receiver 6.8" 200mm Digital Multimedia Receiver

DMX723WS Monitor with Receiver 6.8" 200mm Digital Multimedia Receiver

DMX723WS

Dhs. 1,169.00 AED
Dhs. 1,169.00 AED
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorized Seller
    Authorized Seller
  • Flexible Returns
    Flexible Returns
  • 100% Genuine Product
    100% Genuine Product
  • 2 Years
    2 Years Warrenty

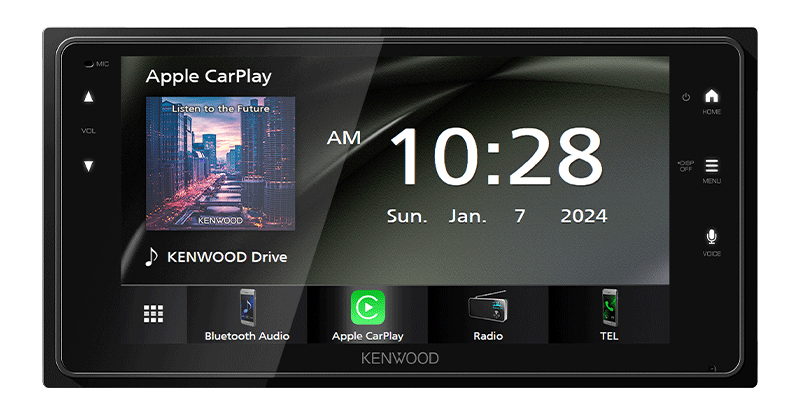

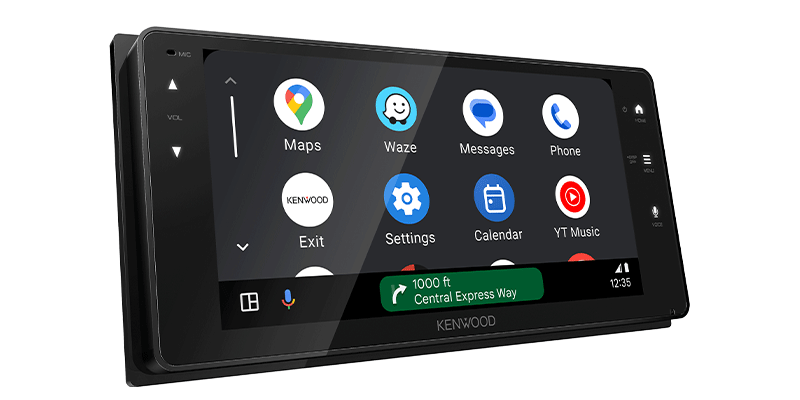

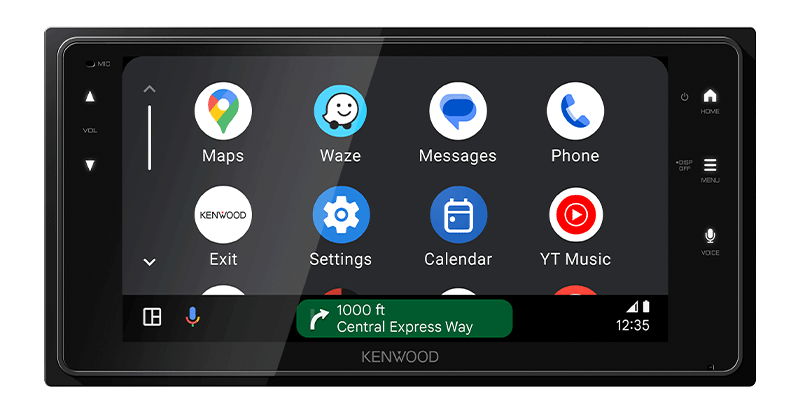

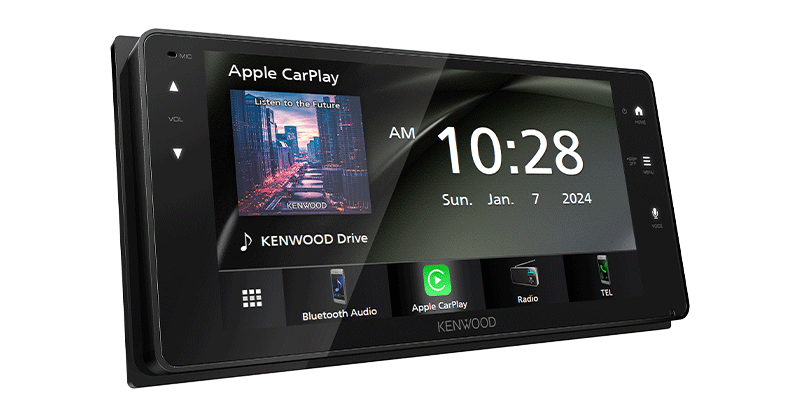

The DMX723WS Monitor with Receiver features a 6.8" WSVGA display with capacitive touch panel for a seamless user experience. With both wired and wireless Apple CarPlay, as well as Android Auto and Android Auto Wireless, stay connected on the go. Enjoy crystal-clear sound with digital time alignment and a 13-band EQ, and easily park with rear view camera input and parking guidelines. Plus, stream music and make calls effortlessly with built-in Bluetooth.

n Unit Monitor
Section		 Picture size 6.8 inches (diagonal) wide
W x H
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,843,200
1024H x 600V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F
Section 		 USB Standard USB2.0 High Speed
Connector Type-A
File System FAT32/ exFAT
Maximum Power Supply Current DC5V(DC logo) 2.1A
D/A Converter 24 Bit
Audio Decoder MP3/ WMA/ WAV/ AAC/ FLAC
Video Decoder MPEG1/ MPEG2/ MPEG4/ H.264/ MKV
Wi-Fi
Section 		 Frequency response 192k Sampling 20 - 20,000 Hz
96k Sampling 20 - 20,000 Hz
48k Sampling  20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
IEEE Standard 802.11 a/ n/ ac
Frequency Range 5GHz (5.745～5.825GHz)
Channels 149ch
  Auto(149,153,155,157,161ch)
Transfer rates (MAX) 11a:54 Mbps / 11b: 11 Mbps
  11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps
Bluetooth
Section		 Bluetooth Specification Version Bluetooth V5.0
Frequency 2.402 - 2.480 GHz
RF Output Power (E.I.R.P.) +0.7 dBm (AVE), Power Class 2
Maximum Communication range Line of sight approx.10m
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP(Hands Free Profile) 1.7
SPP(Serial Port Profile) 1.2
A2DP(Advanced Audio Distribution Profile) 1.3
AVRCP(Audio/Video Remote Control Profile) 1.6
PBAP(Phonebook Access Profile) 1.2
FM Frequency range (Frequency step) 87.5 - 108 MHz (50kHz)
Usable sensitivity 16.2dBf
S/N:30dB 1.8μV/75Ω
Frequency response(±3.0dB) 30Hz - 14kHz
S/N Ratio(dB) 50dB (MONO)
Stereo separation 35 dB (1 kHz)
AM Frequency range (Frequency step) 531 - 1611 kHz (9kHz)
Usable sensitivity 99μV (40 dBμ)
Video Color system of external video input NTSC/ PAL
Rear view camera input level (RCA) 1 Vp-p / 75 Ω
Video Output level (RCA) 1 Vp-p / 75 Ω
Audio Maximum Power (Front&Rear) 50Wx4
Full Bandwidth Power (Front&Rear)
(at less than 1%THD)		 22Wx4
Output frequency band 20 - 20,000 Hz
Preout level (V) 2.5 V / 10 kΩ
Preout impedance (Ω) 1.4 kΩ
Speaker Impedance (Ω) 4 - 8 Ω
Equalizer 13 Band
Band Frequency 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz
Level -09 - +09 (-9dB - +9dB)
Q -
HPF Frequency Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
Slope -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
LPF Frequency 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
Slope -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
General Operating voltage 12V DC car battery

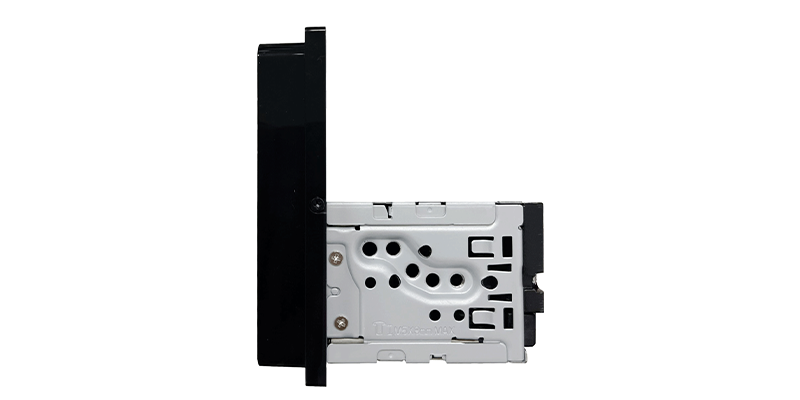

Main Unit Installation size W x H x D(w/o sleeve) 205.5 x 104 x 85.7mm
Weight Main unit 1.07 kg
